We offer Rods in 2 Grades
Our Ceramic Wire Guide Rods made of ultra hard materials are available in 2 grades:
Guide grade
Gage grade

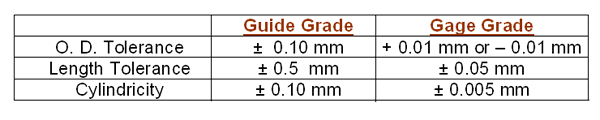

The grades vary in the degree of manufacturing tolerances, tabulated below:

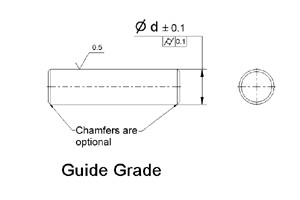

or to be expressed in Geometric Characteristic Symbols:
Rod Guides Available from Inventory
We keep Rods on inventory in Guide Grade, which can be processed to Gage Grade upon request. Also offered is O. D. reduction service of the guide grade rods, provided the total reduction does not exceed 0.20 mm, or 0.10 mm on each side. Rods in DL finish cannot be reduced in the O. D.
To view the available dimensions, please click :
